GSI Select™ Hi-Flight Conveyors
Chain Conveyors
GSI Select™ Hi-Flight Conveyors
Chain Conveyors
Highlights
- The ideal solution for steeper inclines or pit applications.
- Feature the same heavy-duty and maintenance-friendly features as the Select™ line of En-Masse conveyors.
- Utilizes a taller chain flight paddle to improve performance on steeper inclines.
Easily create and customize the perfect conveyor for your project.
GSI's top-of-the-line conveyor is loaded with premium features and exclusive options.
Built to Perform
Head Section
- Dodge® pillow block bearings standard on all sizes, supplied with full-coverage safety guarding
- ½” thick slotted edge machined UHMW shaft seals on all sizes keep dust in and weather out
- 7 gage side panels (4.55mm) standard on all sizes
- Flame-cut, hardened steel sprockets. Split hubs standard on Select IS, and available on Select
- Head shafts are turned ground and polished
- Companion mating flanges available for all sizes
Intermediate Section
- Standard 10 gauge (3.41mm) intermediate trough sides
- Abrasion resistant steel wear liners with recessed fasteners for removal or replacement
- Fixture assembled for squareness to ensure accurate alignment and ease of installation
- Welded 2” structural steel angle flanges to provide rigidity and accurate alignment
- Side-mounted AR steel rail return (level sections) and full-width AR steel pan return (inclined sections) standard
- 3 standard cover styles to meet any need & ensure weather-tight operation
- Bolted removable bottom construction
Chain Features
- Steel Bushed Roller (SBR) & Welded Mill (WM) chains available to suit any application
- Multiple chain specs available in most box sizes to better suit conveyors of all lengths
- UHMW flight pads prevent steel-to-steel contact with Nylon optional for extremely abrasive materials
- Steel backer plates included on larger sizes & heavier chains for maximum durability

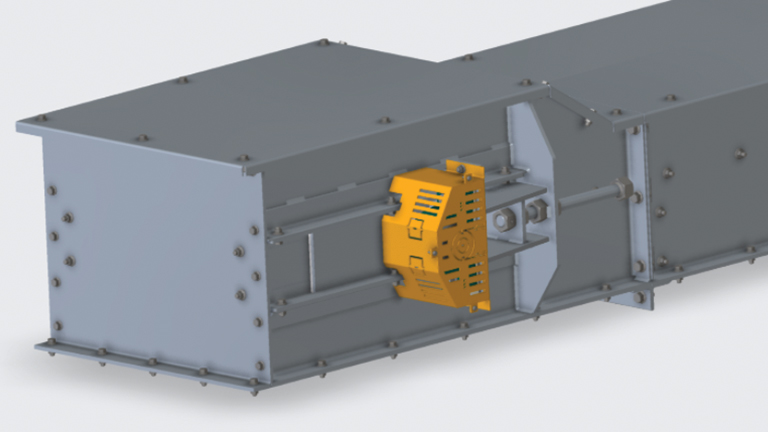

Tail Section
- DODGE® pillow block bearings standard on all sizes, supplied with full-coverage safety guarding
- Corrosion-resistant ACME threaded chain take-up system with machined UHMW shaft seals
- Push-style take-up allows for tighter installation locations without take-up rod interference
- 7 gage side panels (4.55mm) standard on all sizes
- Flame-cut, hardened steel sprockets. Split hubs standard on Select IS, & available on Select
- Tail shafts are turned ground and polished
Specifications
Click + to expand.
CAPACITIES (BPH)
| Size (WxH) | 1* | 100* | 110* | 120* | 130* | 140* | 150* | 160* | 170* | 180* |
|---|---|---|---|---|---|---|---|---|---|---|
| 12"x12" | 20 | 2,009 | 2,210 | 2,411 | 2,612 | 2,812 | 3,013 | 3,214 | 3,415 | 3,616 |
| 16"x12" | 27 | 2,679 | 2,946 | 3,214 | 3,482 | 3,750 | 4,018 | 4,286 | 4,554 | 4,821 |
| 16"x14" | 32 | 3,214 | 3,536 | 3,857 | 4,179 | 4,500 | 4,821 | 5,143 | 5,464 | 5,786 |
| 21"x14" | 42 | 4,219 | 4,641 | 5,062 | 5,484 | 5,906 | 6,328 | 6,750 | 7,172 | 7,594 |
| 14"x20" | 42 | 4,189 | 4,608 | 5,027 | 5,446 | 5,865 | 6,284 | 6,703 | 7,122 | 7,541 |
| 16"x20" | 48 | 4,788 | 5,267 | 5,745 | 6,224 | 6,703 | 7,182 | 7,661 | 8,139 | 8,618 |
| 20"x20" | 60 | 5,985 | 6,583 | 7,182 | 7,780 | 8,379 | 8,977 | 9,576 | 10,174 | 10,773 |
| 26"x20" | 78 | 7,780 | 8,558 | 9,336 | 10,114 | 10,892 | 11,671 | 12,449 | 13,227 | 14,005 |
| 32"x20" | 96 | 9,576 | 10,533 | 11,491 | 12,449 | 13,406 | 14,364 | 15,321 | 16,279 | 17,236 |
| 26"x26" | 104 | 10,392 | 11,431 | 12,470 | 13,510 | 14,549 | 15,588 | 16,627 | 17,666 | 18,705 |
| 32"x26" | 128 | 12,790 | 14,069 | 15,348 | 16,627 | 17,906 | 19,185 | 20,464 | 21,743 | 23,022 |
| 32"x32" | 160 | 16,004 | 17,605 | 19,205 | 20,806 | 22,406 | 24,006 | 25,607 | 27,207 | 28,808 |
| 36"x32" | 180 | 18,005 | 19,805 | 21,606 | 23,406 | 25,207 | 27,007 | 28,808 | 30,608 | 32,409 |
*Conveyor speed in feet per minute.
Capacities calculated with no side liners, thicker side liners will reduce capacity.

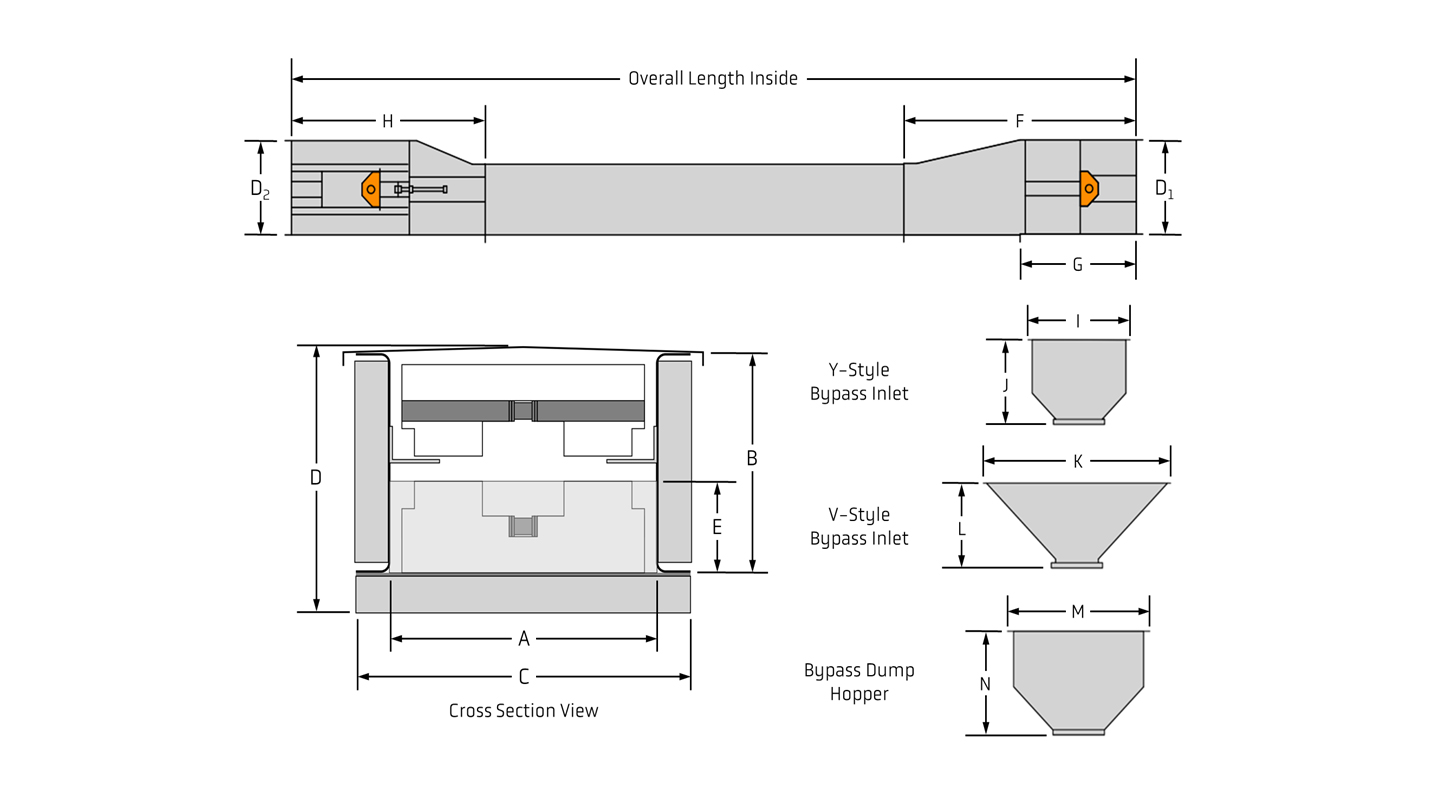

DIMENSIONS (IN.)
| Box Size (Width x Height) | Overall Width | Overall Height* | Head Height | Tail Height | Grain Depth | Head Length | Discharge Length | Tail Length | Y-Style Bypass Height* | Y-Style Bypass Width | Y-Style Bypass Height* | V-Style Bypass Width | Dump Hopper Height* | Dump Hopper Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A x B | C | D | D1 | D2 | E | F | G | H | I | J | K | L | M | N |
| 12"x12" | 16 | 14.61 | 17.06 | 15.50 | 5.00 | 60 | 36 | 42 | 24.19 | 28 | 24.19 | 56 | 30.94 | 54.50 |
| 16"x12" | 20 | 14.71 | 17.06 | 15.50 | 5.00 | 60 | 36 | 42 | 26.19 | 32 | 26.19 | 64 | 30.94 | 54.50 |
| 16"x14" | 20 | 16.71 | 19.75 | 18.56 | 6.00 | 60 | 36 | 42 | 28.19 | 32 | 28.19 | 68 | 38.06 | 58.50 |
| 21"x14" | 25 | 16.84 | 19.75 | 18.56 | 6.00 | 60 | 36 | 42 | 30.69 | 37 | 30.69 | 78 | 38.06 | 58.50 |
| 14"x20" | 18 | 22.66 | 26.88 | 26.88 | 8.94 | 72 | 36 | 60 | 33.19 | 38 | 33.19 | 76 | 44.06 | 66.00 |
| 16"x20" | 20 | 22.71 | 26.88 | 26.88 | 8.94 | 72 | 36 | 60 | 34.19 | 40 | 34.19 | 80 | 44.06 | 66.00 |
| 20"x20" | 24 | 22.82 | 26.88 | 26.88 | 8.94 | 72 | 36 | 60 | 36.19 | 44 | 36.19 | 88 | 44.06 | 66.00 |
| 26"x20" | 30 | 22.97 | 26.88 | 26.88 | 8.94 | 72 | 36 | 60 | 39.19 | 50 | 39.19 | 100 | 44.06 | 66.00 |
| 32"x20" | 36 | 23.13 | 26.88 | 26.88 | 8.94 | 72 | 36 | 60 | 42.19 | 56 | 42.19 | 112 | 44.06 | 66.00 |
| 26"x26" | 30 | 28.97 | 34.56 | 30.88 | 11.94 | 96 | 42 | 66 | 45.19 | 50 | 45.19 | 112 | 54.19 | 66.00 |
| 32"x26" | 36 | 29.13 | 34.56 | 30.88 | 11.94 | 96 | 42 | 66 | 48.19 | 56 | 48.19 | 124 | 54.19 | 66.00 |
| 32"x32" | 36 | 35.13 | 41.31 | 37.44 | 14.94 | 102 | 48 | 72 | 56.19 | 60 | 56.19 | 140 | 59.19 | 66.00 |
| 36"x32" | 40 | 35.24 | 41.31 | 37.44 | 14.94 | 102 | 48 | 72 | 56.19 | 60 | 56.19 | 144 | 59.19 | 66.00 |
* Based on 3/16 bottom liner and lapped covers, heavier bottom liners and alternate cover styles will increase this dimension.
